Wet Well Bain Marie with Curved Deli Glass Screen

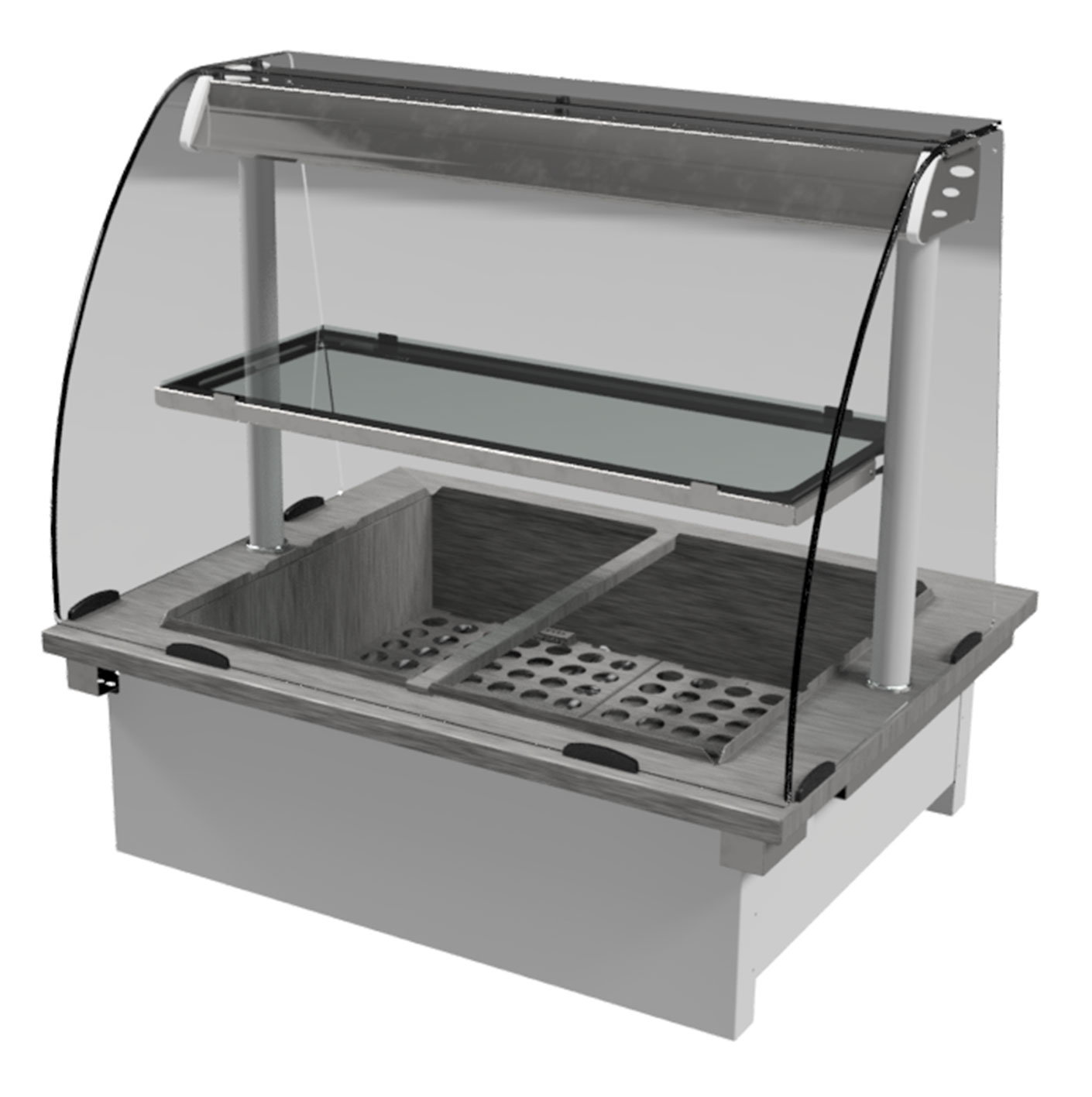

Wet Well Bain Marie Model shown - DBMWD
Spec Sheet Brochure

WARRANTY
2 YEARS PARTS / 1 YEAR LABOUR

Wet Heat Bain-Marie with Deli Curved Glass Screen

Product Information

Complete with Illuminated Gantry

Hot display units incorporating a wet well Bain-Marie. Fitted with specially designed, high powered, multiple immersion heating elements - ideal for holding pre-heated delicate food products like sauces and soups at a constant temperature. Minimising issues with products drying out. Suitable for the display of most types of hot foods, designed to accommodate various combinations of Interchangeable Gastronom type pans up to 150 mm deep. Each opening can also be fitted with our optional lift-off, heavy duty, Spiked Carvery Pad, Neo-Ceram Hot Top adaptor or Round Pot Adaptors. Complete with a drain and valve.

Fitted with specially designed, high powered, multiple immersion heating elements

Features

  • Condensing unit set at 90° angle. Removes the need for unsightly vents in the front panels of serveries and counters.
  • Accommodates 60mm deep 1/1 GN pans [not supplied].
  • Digital thermostat and temperature control.
  • Advanced air flow design with unique polar airstream technology.
  • Efficient, eco-friendly, refrigeration.
  • Long life, low energy LED.
  • Maintaining the core product temperature of pre-chilled food below 5°C in ambient condition not exceeding 25°C and 60% relative humidity.
  • Automatic condensate water evaporation [no need to empty drip trays).
  • Automatic defrost control.
  • 24 hour operation.
  • Fully insulated.
  • Plenum duct to aid onsite ventilation and installation.

Model Specifications

D2BMWD
L.830 D.660 H.540 44kg 10amp/2.22kW

D3BMWD
L.1158 D.660 H.540 58kg 15amp/3.44kW

D4BMWD
L.1486 D.660 H.540 76kg 32amp/4.66kW

D5BMWD
L.1814 D.660 H.540 86kg 32amp/5.88kW

Optional Extras

DNC - NeoCeram Glass Insert GN 1/1
Gastronorm Containers and Lids
Cutting Block

Downloads

D2BMWD

D3BMWD

D4BMWD

D5BMWD

DWG files available on request

Find your local dealer

Model Specifications

  • Code: D2BMWD
  • Length: 830
  • Depth: 660
  • Height (with gantry): 540
  • Weight: 44kg
  • Power rating: 10amp/2.22kW
  • 1/1GN pan capacity: 2
  • Code: D3BMWD
  • Length: 1158
  • Depth: 660
  • Height (with gantry): 540
  • Weight: 58kg
  • Power rating: 15amp/3.44kW
  • 1/1GN pan capacity: 3
  • Code: D4BMWD
  • Length: 1486
  • Depth: 660
  • Height (with gantry): 540
  • Weight: 76kg
  • Power rating: 32amp/4.66kW
  • 1/1GN pan capacity: 4
  • Code: D5BMWD
  • Length: 1814
  • Depth: 660
  • Height (with gantry): 540
  • Weight: 86kg
  • Power rating: 32amp/5.88kW
  • 1/1GN pan capacity: 5
