Drop-in Wet Well Bain Marie Closed Front Curved Glass Screen

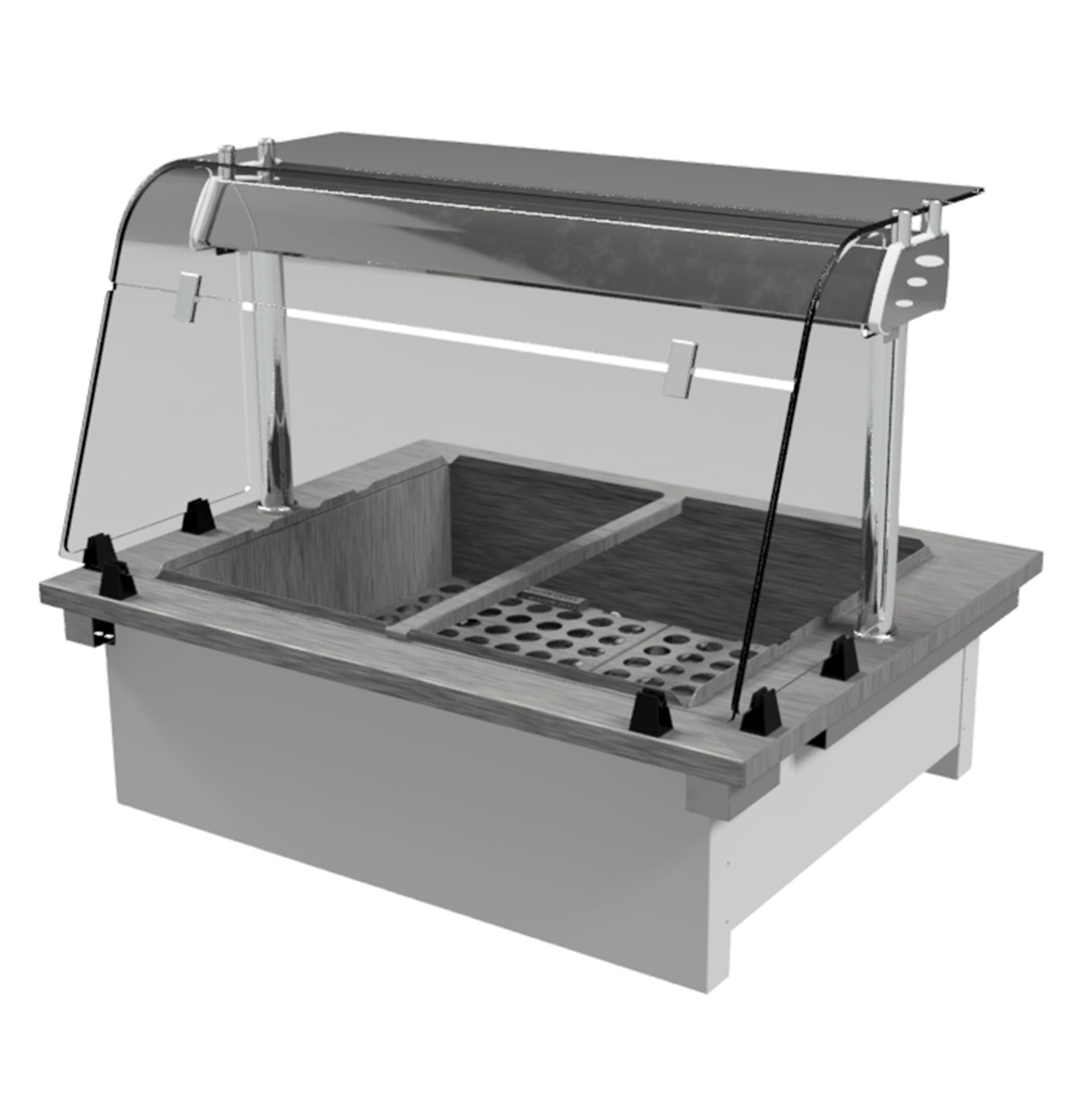

Wet Well Bain Marie Model shown - D3BMWF
Spec Sheet Brochure


Wet Heat Bain-Marie with Closed Front Curved Glass Screen

Product Information

Complete with Illuminated Gantry

Hot display units incorporating a wet well Bain-Marie. Fitted with specially designed, high powered, multiple immersion heating elements - ideal for holding pre-heated delicate food products like sauces and soups at a constant temperature. Minimising issues with products drying out. Suitable for the display of most types of hot foods, designed to accommodate various combinations of Interchangeable Gastronom type pans up to 150 mm deep. Each opening can also be fitted with our optional lift-off, heavy duty, Spiked Carvery Pad, Neo-Ceram Hot Top adaptor or Round Pot Adaptors. Complete with a drain and valve.

Fitted with specially designed, high powered, multiple immersion heating elements


  • Digitally thermostat & temperature control
  • Digital flashing Low water warning system
  • Individual 1/1 GN size elements immersed in the water for high efficiency
  • Easy lift out perforated heating element covers
  • Gastronorm pans can be swapped out and replenished during service
  • A unique raise lip all-round the well allows the easy removal of pans
  • 4 models in the range holding 2 to 5 GN 1/1 Gastronorm type containers
  • Various mixed sizes of Gastronorm pans can be used in unison
  • 24 hour operation [as long as water level is maintained & Bain-marie openings have Pans or covers during service]
  • Self-contained unit. Electrics are integral no awkward fitting under counter control boxes.
  • Fully insulated

Model Specifications

L.830 D.660 H.408 44kg 10amp/2.22kW

L.1158 D.660 H.408 53kg 15amp/3.44kW

L.1486 D.660 H.408 65kg 32amp/4.66kW

L.1814 D.660 H.408 78kg 32amp/5.88kW

Optional Extras

DNC - NeoCeram Glass Insert GN 1/1
Gastronorm Containers and Lids
Cutting Block






DWG files available on request

Find your local dealer

Model Specifications

  • Code: D2BMWF
  • Length: 830
  • Depth: 660
  • Height (with gantry): 408
  • Weight: 44kg
  • Power rating: 10amp/2.22kW
  • 1/1GN pan capacity: 2
  • Code: D3BMWF
  • Length: 1158
  • Depth: 660
  • Height (with gantry): 408
  • Weight: 53kg
  • Power rating: 15amp/3.44kW
  • 1/1GN pan capacity: 3
  • Code: D4BMWF
  • Length: 1486
  • Depth: 660
  • Height (with gantry): 408
  • Weight: 65kg
  • Power rating: 32amp/4.66kW
  • 1/1GN pan capacity: 4
  • Code: D5BMWF
  • Length: 1814
  • Depth: 660
  • Height (with gantry): 408
  • Weight: 78kg
  • Power rating: 32amp/5.88kW
  • 1/1GN pan capacity: 5
