Refrigerated Frost Tops

Drop-in Frost Top2

Spec Sheet Brochure

WARRANTY
2 YEARS PARTS / 1 YEAR LABOUR

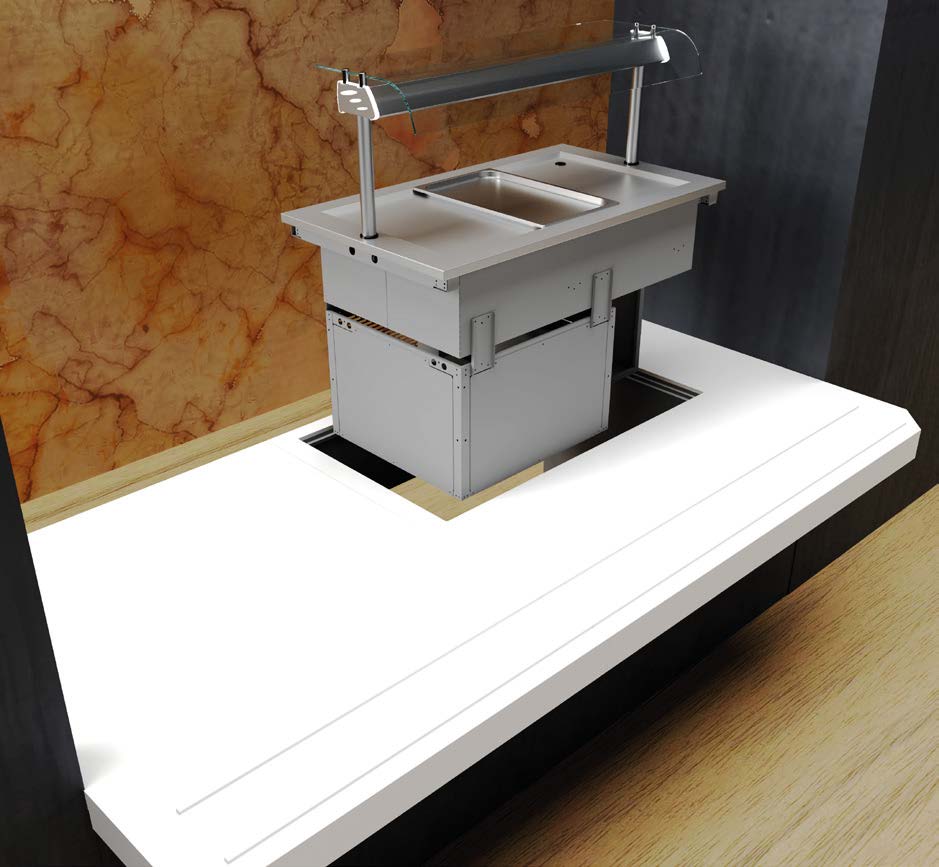

Drop-in Counter Frost Tops

Product Information

Chilled Food & Beverage Display and Service

Chilled display units specially designed to safely hold quick-turnaround, pre-chilled food products at optimum serving temperatures incorporating a recessed frosted top. Frost Tops keep pre-chilled snacks, hors d’oeuvres, side dishes and beverages cool and ready to serve. The unique Versigen innovative contact cooling system provides a frosted chilled display area with a surface temperature between -1°C and -5°C

The recessed area can accommodate 1/1GN size trays, allowing a simple and easy method of handling and restocking food products. Self contained units with accurate digital control, high pressure warning, and a drain which has a shut of valve. The drain pipe can be connected into the main waste system or simply placed over a suitable vessel catch excess water after service. The Refrigeration System is housed underneath in a tidy compact cradle. Utilising a highly efficient, naturally occurring, hydrocarbon refrigeration gas type R290 (as standard). Hermetically sealed, reducing the carbon footprint and energy consumption. Optional overhead gantry’s have LED illumination.

Features

Size 3, 4, and 5 models have the condensing unit set at 90°, removing the need for vents in the front panels of serveries and counters.
Size 2 models have straight through type refrigeration as standard and must have a front and rear vent.
Accommodate 1/1GN size trays [not supplied].
Digital thermostat and temperature control.
Gantry’s have long life, low energy LED’s.
Maintaining the core product temperature of pre-chilled food below 5° C in ambient condition not exceeding 25°C and 60% relative humidity.
Drain with shut off valve, 24 hour operation. Fully insulated.
Supplied with 2m long power cord and plug [10A 230v 50Hz]
Plenum duct to aid on-site ventilation and installation.

Model Specifications

D2FTNG
L.830 D.660 H.25 50kg 10amp/1kW

D3FTNG
L.1158 D.660 H.25 60kg 10amp/1kW

D4FTNG
L.1486 D.660 H.25 70kg 10amp/1kW

D5FTNG
L.1814 D.660 H.25 80kg 10amp/1kW

D2FT
L.830 D.660 H.408 60kg 10amp/1kW

D3FT
L.1158 D.660 H.408 70kg 10amp/1kW

D4FT
L.1486 D.660 H.408 85kg 10amp/1kW

D5FT
L.1814 D.660 H.408 90kg 10amp/1kW

D2FTF
L.830 D.660 H.408 70kg 10amp/1kW

D3FTF
L.1158 D.660 H.408 80kg 10amp/1kW

D4FTF
L.1486 D.660 H.408 95kg 10amp/1kW

D5FTF
L.1814 D.660 H.408 105kg 10amp/1kW

D2FTSL
L.830 D.660 H.396 60kg 10amp/1kW

D3FTSL
L.1158 D.660 H.396 70kg 10amp/1kW

D4FTSL
L.1486 D.660 H.396 85kg 10amp/1kW

D5FTSL
L.1814 D.660 H.396 95kg 10amp/1kW

D2FTSLF
L.830 D.660 H.396 70kg 10amp/1kW

D3FTSLF
L.1158 D.660 H.396 85kg 10amp/1kW

D4FTSLF
L.1486 D.660 H.396 95kg 10amp/1kW

D5FTSLF
L.1814 D.660 H.396 105kg 10amp/1kW

D2FTD
L.830 D.660 H.540 70kg 10amp/1kW

D3FTD
L.1158 D.660 H.540 75kg 10amp/1kW

D4FTD
L.1486 D.660 H.540 85kg 10amp/1kW

D5FTD
L.1814 D.660 H.540 95kg 10amp/1kW

D2FTDSL
L.830 D.660 H.540 70kg 10amp/1kW

D3FTDSL
L.1158 D.660 H.540 80kg 10amp/1kW

D4FTDSL
L.1486 D.660 H.540 90kg 10amp/1kW

D5FTDSL
L.1814 D.660 H.540 105kg 10amp/1kW

Optional Extras

Double sided Island Glass Curved or Shear line type
Additional airflow kit [In-line fan and flexi-duct kit for difficult non-standard installations] (Code: DRAF)

Downloads

2GN Size Drop-in Frost Top, no gantry

3GN Size Drop-in Frost Top, no gantry

4GN Size Drop-in Frost Top, no gantry

5GN Size Drop-in Frost Top, no gantry

2GN Size Drop-in Frost Top with Open Front, Curved Glass Screen

3GN Size Drop-in Frost Top with Open Front, Curved Glass Screen

4GN Size Drop-in Frost Top with Open Front, Curved Glass Screen

5GN Size Drop-in Frost Top with Open Front, Curved Glass Screen

2GN Size Drop-in Frost Top with Closed Front, Curved Glass Screen

3GN Size Drop-in Frost Top with Closed Front, Curved Glass Screen

4GN Size Drop-in Frost Top with Closed Front, Curved Glass Screen

5GN Size Drop-in Frost Top with Closed Front, Curved Glass Screen

2GN Size Drop-in Frost Top with Open Front, Square Glass Screen

3GN Size Drop-in Frost Top with Open Front, Square Glass Screen

4GN Size Drop-in Frost Top with Open Front, Square Glass Screen

5GN Size Drop-in Frost Top with Open Front, Square Glass Screen

2GN Size Drop-in Frost Top with Closed Front, Square Glass Screen

3GN Size Drop-in Frost Top with Closed Front, Square Glass Screen

4GN Size Drop-in Frost Top with Closed Front, Square Glass Screen

5GN Size Drop-in Frost Top with Closed Front, Square Glass Screen

2GN Size Drop-in Frost Top with Deli Screen & Glass Shelf (shelf not refrigerated)

3GN Size Drop-in Frost Top with Deli Screen & Glass Shelf (shelf not refrigerated)

4GN Size Drop-in Frost Top with Deli Screen & Glass Shelf (shelf not refrigerated)

5GN Size Drop-in Frost Top with Deli Screen & Glass Shelf (shelf not refrigerated)

2GN Size Drop-in Frost Top with Square Glass Deli Screen & Glass Shelf (shelf not refrigerated)

3GN Size Drop-in Frost Top with Square Glass Deli Screen & Glass Shelf (shelf not refrigerated)

4GN Size Drop-in Frost Top with Square Glass Deli Screen & Glass Shelf (shelf not refrigerated)

5GN Size Drop-in Frost Top with Square Glass Deli Screen & Glass Shelf (shelf not refrigerated)

DWG files available on request

Find your local dealer

Model Specifications

Code: D2FTNG
2GN No Gantry
Length: 830
Depth: 660
Height: 25
Weight: 50kg
Power rating: 10amp/1kW

Code: D3FTNG
3GN No Gantry
Length: 1158
Depth: 660
Height: 25
Weight: 60kg
Power rating: 10amp/1kW

Code: D4FTNG
4GN No Gantry
Length: 1486
Depth: 660
Height: 25
Weight: 70kg
Power rating: 10amp/1kW

Code: D5FTNG
5GN No Gantry
Length: 1814
Depth: 660
Height: 25
Weight: 80kg
Power rating: 10amp/1kW

Code: D2FT
2GN Curved Glass Screen, Open Front
Length: 830
Depth: 660
Height (with gantry): 408
Weight: 60kg
Power rating: 10amp/1kW

Code: D3FT
3GN Curved Glass Screen, Open Front
Length: 1158
Depth: 660
Height (with gantry): 408
Weight: 70kg
Power rating: 10amp/1kW

Code: D4FT
4GN Curved Glass Screen, Open Front
Length: 1486
Depth: 660
Height (with gantry): 408
Weight: 85kg
Power rating: 10amp/1kW

Code: D5FT
5GN Curved Glass Screen, Open Front
Length: 1814
Depth: 660
Height (with gantry): 408
Weight: 90kg
Power rating: 10amp/1kW

Code: D2FTF
2GN Curved Glass Screen, Closed Front
Length: 830
Depth: 660
Height (with gantry): 408
Weight: 70kg
Power rating: 10amp/1kW

Code: D3FTF
3GN Curved Glass Screen, Closed Front
Length: 1158
Depth: 660
Height (with gantry): 408
Weight: 80kg
Power rating: 10amp/1kW

Code: D4FTF
4GN Curved Glass Screen, Closed Front
Length: 1486
Depth: 660
Height (with gantry): 408
Weight: 95kg
Power rating: 10amp/1kW

Code: D5FTF
5GN Curved Glass Screen, Closed Front
Length: 1814
Depth: 660
Height (with gantry): 408
Weight: 105kg
Power rating: 10amp/1kW

Code: D2FTSL
2GN Square Glass Screen, Open Front
Length: 830
Depth: 660
Height (with gantry): 396
Weight: 60kg
Power rating: 10amp/1kW

Code: D3FTSL
3GN Square Glass Screen, Open Front
Length: 1158
Depth: 660
Height (with gantry): 396
Weight: 70kg
Power rating: 10amp/1kW

Code: D4FTSL
4GN Square Glass Screen, Open Front
Length: 1486
Depth: 660
Height (with gantry): 396
Weight: 85kg
Power rating: 10amp/1kW

Code: D5FTSL
5GN Square Glass Screen, Open Front
Length: 1814
Depth: 660
Height (with gantry): 396
Weight: 95kg
Power rating: 10amp/1kW

Code: D2FTSLF
2GN Square Glass Screen, Closed Front
Length: 830
Depth: 660
Height (with gantry): 396
Weight: 70kg
Power rating: 10amp/1kW

Code: D3FTSLF
3GN Square Glass Screen, Closed Front
Length: 1158
Depth: 660
Height (with gantry): 396
Weight: 85kg
Power rating: 10amp/1kW

Code: D4FTSLF
4GN Square Glass Screen, Closed Front
Length: 1486
Depth: 660
Height (with gantry): 396
Weight: 95kg
Power rating: 10amp/1kW

Code: D5FTSLF
5GN Square Glass Screen, Closed Front
Length: 1814
Depth: 660
Height (with gantry): 396
Weight: 105kg
Power rating: 10amp/1kW

Code: D2FTD
2GN Curved Glass Deli with Glass Shelf (shelf not chilled)
Length: 830
Depth: 660
Height (with gantry): 540
Weight: 70kg
Power rating: 10amp/1kW

Code: D3FTD
3GN Curved Glass Deli with Glass Shelf (shelf not chilled)
Length: 1158
Depth: 660
Height (with gantry): 540
Weight: 75kg
Power rating: 10amp/1kW

Code: D4FTD
4GN Curved Glass Deli with Glass Shelf (shelf not chilled)
Length: 1486
Depth: 660
Height (with gantry): 540
Weight: 85kg
Power rating: 10amp/1kW

Code: D5FTD
5GN Curved Glass Deli with Glass Shelf (shelf not chilled)
Length: 1814
Depth: 660
Height (with gantry): 540
Weight: 95kg
Power rating: 10amp/1kW

Code: D2FTDSL
2GN Square Glass Deli with Glass Shelf (shelf not chilled)
Length: 830
Depth: 660
Height (with gantry): 540
Weight: 70kg
Power rating: 10amp/1kW

Code: D3FTDSL
3GN Square Glass Deli with Glass Shelf (shelf not chilled)
Length: 1158
Depth: 660
Height (with gantry): 540
Weight: 80kg
Power rating: 10amp/1kW

Code: D4FTDSL
4GN Square Glass Deli with Glass Shelf (shelf not chilled)
Length: 1486
Depth: 660
Height (with gantry): 540
Weight: 90kg
Power rating: 10amp/1kW

Code: D5FTDSL
5GN Square Glass Deli with Glass Shelf (shelf not chilled)
Length: 1814
Depth: 660
Height (with gantry): 540
Weight: 105kg
Power rating: 10amp/1kW

Note: Height refers to height above counter after installation, including gantry & screen
