Hot Tops without Gantry or Glass Screen

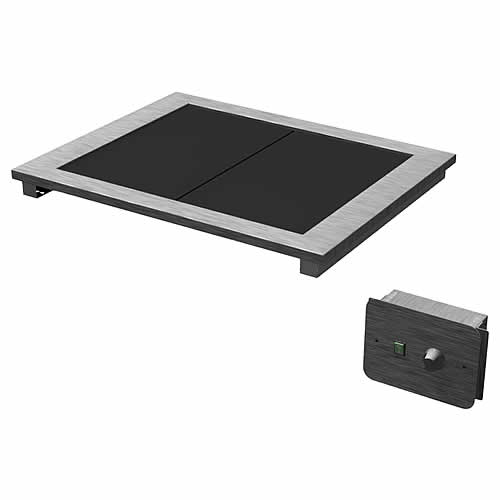

Drop in hot top with no gantry, model D2HTNG Model shown - D2HTNG
Spec Sheet Brochure

WARRANTY
2 YEARS PARTS / 1 YEAR LABOUR

Black Ceramic Glass Hot Food Display & Service

Product Information

Simple installation into any new or existing counter structure

Hot Display with individual, Neo - Ceram glass, GN 1/1 size, thermo panels collectively governed by an energy regulating control. Designed to maintain Precooked food at serving temperature. They are not induction type units which require dedicated food pans, and apart from cast iron can be used with any suitable heatproof food container. Chafing dishes are not required. The surface temperature of the panels is adjustable to a maximum of 100°C.

Low Power Rating. Each unit is supplied with cable & plug for connection to any convenient 10 amp GPO.

Features

  • Simply drop into place and plug into a 10 amp power outlet
  • All controls are fitted in the gantry hood for easy install, commissioning and operation
  • Alternative panel mounted remote control Box on models with no overhead gantry
  • 24/7 operation
  • Self-contained unit. Electrics are integral no awkward fitting under counter control boxes.
  • 10 amp plug and go
  • Ready to Insert into any new or existing ambient counter structure
  • Guaranteed evenly distributed heat with no hot spots
  • Even flat surface with no distortion or discolouring

Model Specifications

D2HTNG
L.830 D.660 18kg 10amp/0.36kW

D3HTNG
L.1158 D.660 24kg 10amp/0.54kW

D4HTNG
L.1486 D.660 31kg 10amp/0.72kW

D5HTNG
L.1814 D.660 39kg 10amp/0.90kW

Downloads

D2HTNG

D3HTNG

D4HTNG

D5HTNG

DWG files available on request

Find your local dealer

Model Specifications

  • Code: D2HTNG
  • 2 x 1/1GN Black Ceramic Glass Heating Panels
  • Length: 830
  • Depth: 660
  • Weight: 18kg
  • Power rating: 10amp/0.36kW
  • 1/1GN pan capacity: 2
  • Code: D3HTNG
  • 3 x 1/1GN Black Ceramic Glass Heating Panels
  • Length: 1158
  • Depth: 660
  • Weight: 24kg
  • Power rating: 10amp/0.54kW
  • 1/1GN pan capacity: 3
  • Code: D4HTNG
  • 4 x 1/1GN Black Ceramic Glass Heating Panels
  • Length: 1486
  • Depth: 660
  • Weight: 31kg
  • Power rating: 10amp/0.72kW
  • 1/1GN pan capacity: 4
  • Code: D5HTNG
  • 5 x 1/1GN Black Ceramic Glass Heating Panels
  • Length: 1814
  • Depth: 660
  • Weight: 39kg
  • Power rating: 10amp/0.90kW
  • 1/1GN pan capacity: 5
